Hi Everyone, Ive been lurking Plank On Frame Boat Construction 00 around the Plank on Frame builds on here for ages now, dreaming of the day when I have the space, time and money to build a true Plank on Frame model, when I had a bit of a brain wave: Firstly, my woodworking skills wouldnt be up to scratch to build a true Plank On Frame Boat Construction 00 Contempora � Building, Framing, Planking and plating a ships hull and deck. Plank on Frame Build with a Plug/Mould. Facebook. CALENDARS AVAILABLE - Featuring Models by MSW and NRG members - From NRG Store ?. Plank Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 on Frame Build with a Plug/Mould. Build Your Own Boat using Construction Methods and plans from Hartley Boat Plans. This page has details of the construction methods used by our boat plans.� The world Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 renowned Hartley web-frame construction method superior for strength and ease of fitting out (is copied by many). Mistakes and damage are easily repaired. Lowest level of on-going maintenance.� Apart from strip plank construction it Plank On Frame Boat Construction 00 is the only viable method for building large round-bilge boats economicaly within amateur capability. It is estimated that Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 more than 80% of all amateur owner built monohull boats that have made extended ocean voyages, are Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 of ferro-cement construction. Check out our site at myboat320 boatplans for in-depth information pictures, how-to, and the world Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 of ferroboats. Building In Steel. Build Your Own Plank-Constructed Pond Yacht. Build a radio controlled vintage Marblehead class pond yacht. Motor Yat Xenie.� Hello, I�m thinking of building a boat partly with skin on frame technique. Why? I helped build a strip-planked canoe many years ago, that was very time-consuming and I�m Plank On Frame Boat Construction 00 afraid I don�t have the skills to do it alone.
After a brief hiatus to have a hip replaced, I started the 7th strake below the sheer strake in July The forward planks are too Frame On Plank Boat Construction 00 long to fit in the steambox, so I used a process I learned from Louis Sauzedde you can see his YouTube video here.
The steam is brought from the steambox through a 50 foot rubber hose into a plastic tube placed around the plank. I also used this method on the clamp. The video above is an awkward attempt to show the setup. The hose is connected to the output Plank On Frame Boat Construction 00 pipe from the steambox located outside the barn , runs along the side the boat and is inserted about Plank On Frame Boat Construction 00 halfway into the plastic tube.

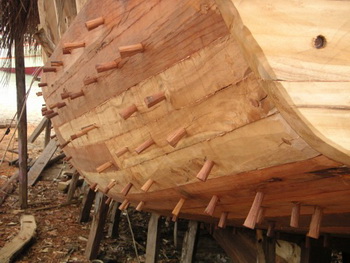

The voice at the end of the video is the FedEx driver who poked his head in the door on the other side of the boat. There are more pictures of the process at the end of the gallery below which show how the plastic tube was made. Planking is the outer skin of the hull. This is done primarily for strength, as the sheer plank will take the fastenings holding the deck.
This plank will also see more wear and tear from Plank On Frame Boat Construction 00 docks, etc. The sheer plank was steam bent and fastened on first. In the forward end of the boat, the deck steps up about 8 inches in order to provide more headroom in the forward Plank On Frame Boat Construction 00 cuddy cabin. In the original Chebacco boats, the cuddy was the living quarters for the crew of 2 or 3 fisherman.
There are two rows or strakes of planks above the main sheer plank in the cuddy area. These were steam bent and fastened on next. Planking is now proceeding from the sheer Construction On Boat Plank Frame 00 strake downward for about 7 strakes. A strake is one row of planking all around the boat. So far on Lion , each strake has consisted of 3 or 4 planking boards per side. Then the Plank On Frame Boat Construction 00 garboard lowest strake next to the keel will be hung and Plank On Frame Boat Construction Years planking will proceed up to meet Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 the topside planks.
So far, each completed strake has taken between and man-hours, from hauling the rough-sawn boards in from the lumber pile to completion of fastening. The third strake below the sheer plank presented a challenge. The picture below shows the spiling batten set up for the third strake. The straight batten is clamped in place with little or no edge-set in this picture. To saw that much curve into the top edge of the plank would require a board much wider than I have available.
The Plank On Frame Boat Construction 00 Plank Boat On Construction Frame 00 plank board then must be edge set while steam bending in place by about the total amount you On Construction Plank 00 Frame Boat had edge set the batten. For this strake, I edge set the plank a total of about 5 inches in a 14 foot plank.
I had mixed results. On the starboard side, where I used a natural crook board which closely matched the required curve, I was able to bend and edge-set during steam bending with difficulty, but without any splits. On the port side, where I did not have a natural crook board available, the board split while edge setting, along the cross-grain resulting from cutting the On Construction Frame Plank Boat 00 On Construction Frame 00 Plank Boat required curve from a straight board. Since I was able to get most of the bend and edge-set before the split occurred, and because the split only extended part way across the plank, I decide Plank On Frame Boat Construction 00 to repair the split with epoxy and a carriage bolt installed edge-wise across the cross grain.
The picture below shows that portion of the plank where the split occurred. In the 1 minute time-lapse video Plank On Frame Boat Construction 00 below, the third strake is hung. This includes 6 individual planks, 3 port and 3 starboard. The video covers a 3 month period about manhours from December to mid-March During that time, we had two steam-bending days when Chris, Josh, Nicole, Linda, and Holly helped out.
The 6th strake below the sheer plank was completed in December It consisted of 4 boards per side. The forward- and after-most boards are very short 8 and 7 feet to accommodate proper spacing of butt joints. After hanging the 5th strake below the sheer strake, I completed fairing the upper strakes using jack planes and scrapers. I also put Plank On Frame Boat Construction 00 a coat of preservative on the upper faired strakes. It consists of a mix of pine rosin, turpentine and linseed oil, with a little Japan drier.
I think those planks are ready for caulking and painting. This may seem a little premature given the overall state of completion, but I wanted to get the fairing done on the upper strakes before taking down the scaffolding.
See the photo gallery below for planking progress to date. The photos are in chronological order, so the most recent pictures are 00 On Frame Plank Boat Construction at the end of the gallery.
Most pictures are captioned to explain the process. Comments on either the Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00 website or the boat will be greatly appreciated. You can contact me Mike Danesi at mnldanesi gmail. Skip Plank On Frame Boat Construction 00 to content After a brief hiatus to have a hip replaced, I started the 7th strake below Plank On Frame Boat Construction 00 the sheer strake in July The first plank in the cuddy deck area being steam-bent in place.
The difference in thickness between the sheer plank and the rest of the planking is evident here. First strake below the Boat Construction Plans Ltd sheer strake freshly steam-bent in place, viewed from below the sternpost. Photo by Lisa Lettieri Plank On Construction Boat 00 Frame Planking is now proceeding from the sheer strake downward for about 7 strakes. Spiling batten for the aft On 00 Plank Construction Boat Frame Plank On Frame Boat Construction 00 plank, 3rd below the sheer plank. Lots of north-south shape, in addition to a healthy east-west bend! Third strake below the sheer plank took about man-hours.
Port side looking forward. Port side, looking aft. During Plank On Frame Boat Construction 00 edge-setting, the plank split along the diagonal grain. I repaired the split with epoxy and a carriage bolt. In this picture, I have drawn in the location of the carriage bolt. The split extended from Plank On Frame Boat Construction 00 the top edge of the plank near the left side of this picture, diagonally down to the right for about four inches, passing about an inch under the head of the carriage bolt. Port side looking aft. The larger batten at the bottom runs through the deck marks on each frame to lay out the main sheer line, which defines the top of the upper plank.
Main sheer line, stbd Plank On Frame Boat Construction 00 side looking forward. The port forward sheer plank being used to trace out its mate for the stbd side. Gina getting ready to hand the hot plank up to the rest of the crew. Photo by Tom Heller. Crew is ready for the hot plank on the starboard side forward. Chris getting ready to give the hot plank a push. Pat gets a clamp on in tight quarters. Photo by Nicole Danesi. Joel about to push in the forward end of the sheer plank aft.
But he does keep the crew entertained. Ron and Ralph working the clamps. Jonathan working the aft end of the plank. About to clamp the forward end in. Stbd side, aft. Sheer plank is bent, cooling down. The Plank On Frame Boat Construction 00 structural member known as the clamp is visible below the sheer plank, on the inside of the frames.Plank On Frame Boat Construction 00 Plank On Frame Boat Construction 00
Always trying to figure a better way. Aft end, viewed from outside the barn. View of both the clamp and sheer plank fastened port side aft. Same on the stbd side. The sheer plank is on! Stbd side looking aft.
Port side forward. Dick Plog donated a white oak tree from his property, as well as his labor to saw and deliver it. This plank is from that tree. Josh Plank On Frame Boat Construction 00 persuades the first cuddy deck plank into position. Photo by Gina Trish. Gina helps steam-bend the first cuddy Plank On Frame Boat Construction 00 Plank 00 On Boat Construction Frame deck plank around the curve of the bow.
The circular saw does a great job of cutting the planks to near-finished shape. So most planks were sawn from straight-grained stock and worked in between defects. The Plank On Frame Boat ConstructionPlank Construction Boat 00 Frame On 00 clamps left black stains from the iron-oak interaction.
But these were usually easy to remove. After steam-bending on the boat, each plank is removed to the bench to make adjustments to the fit and Frame On 00 Boat Construction Plank add the caulking bevel, both done by hand plane. This is the 2nd upper cuddy deck plank, cut and planed to shape prior to steam-bending.
